Shuttle racking system

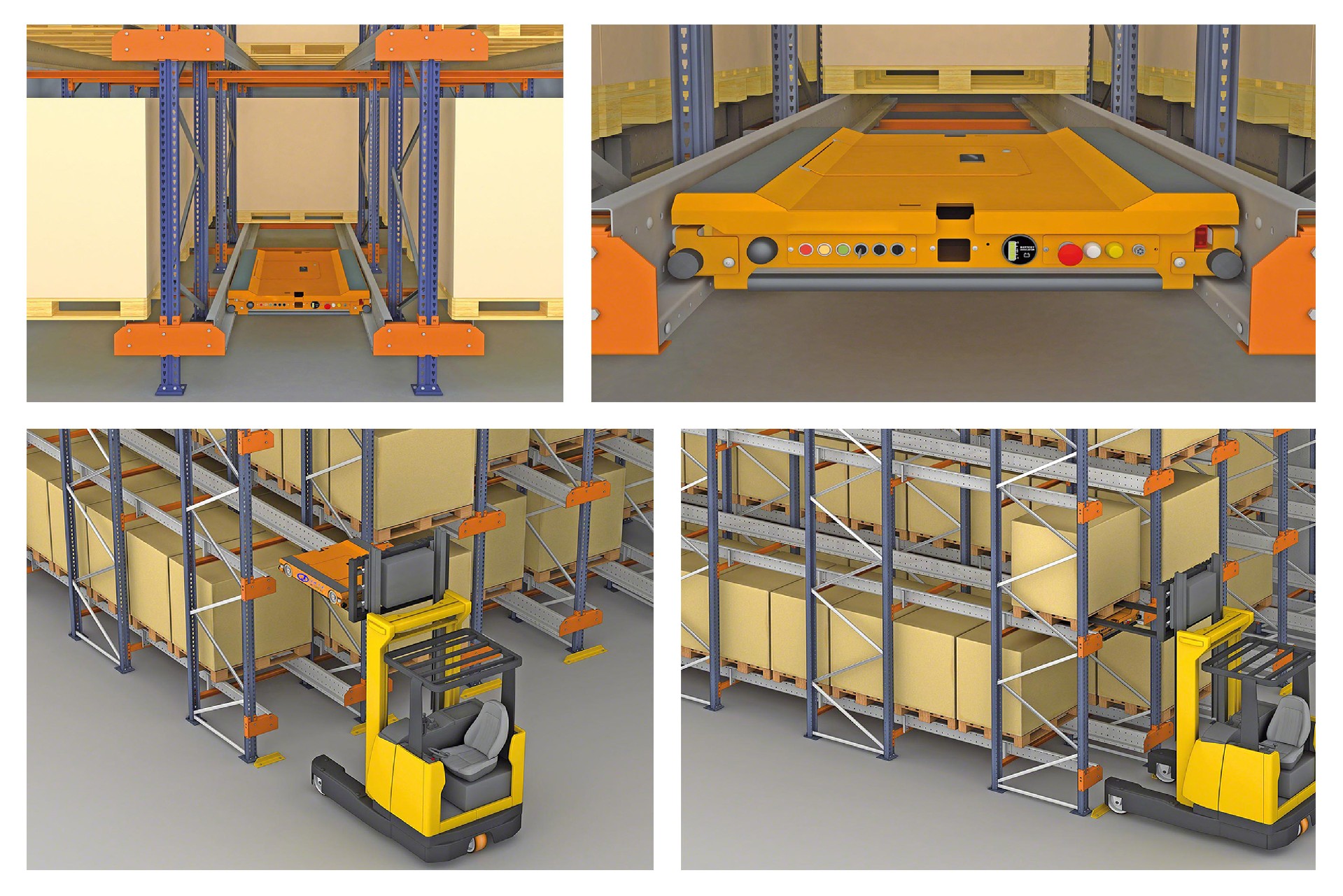

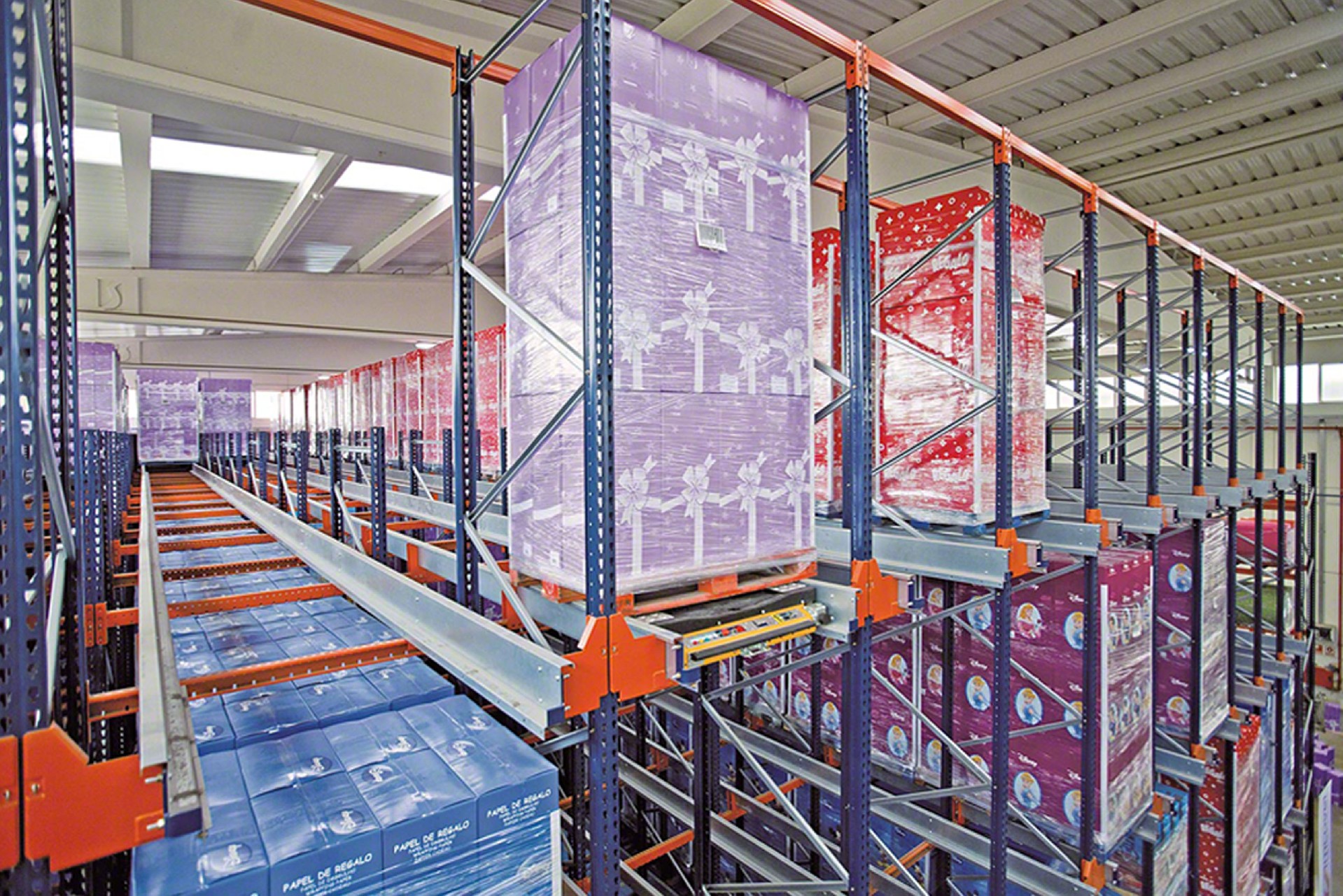

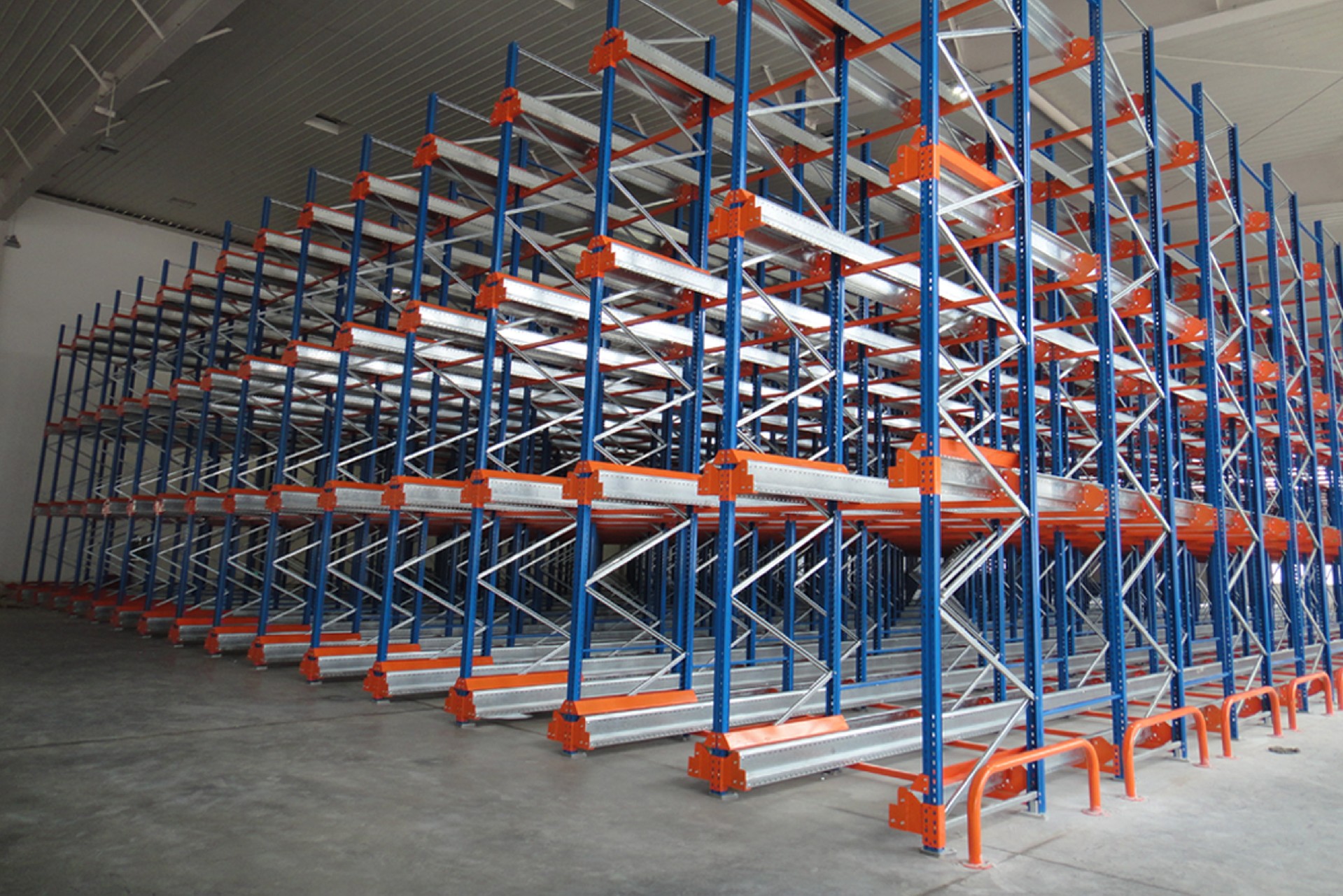

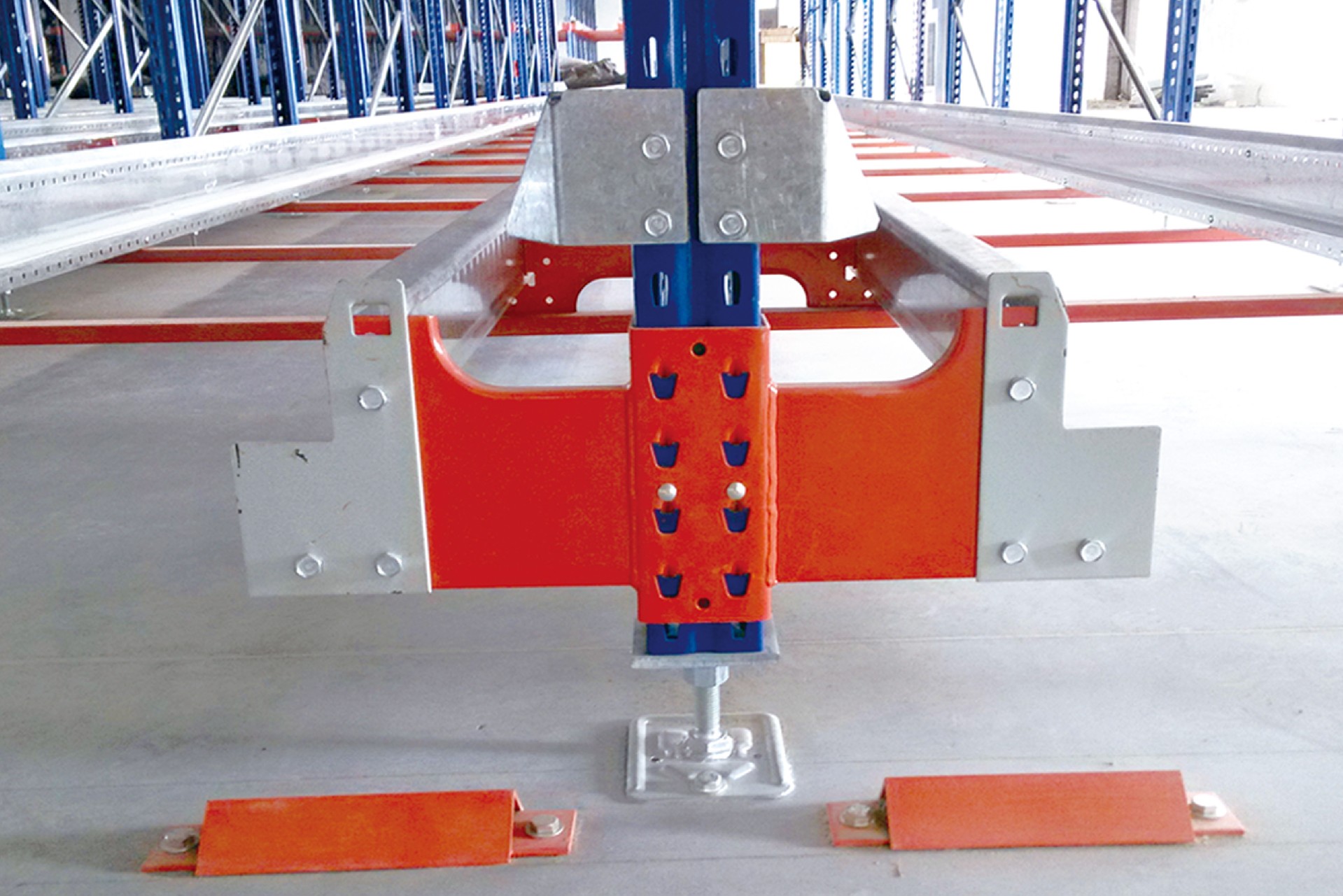

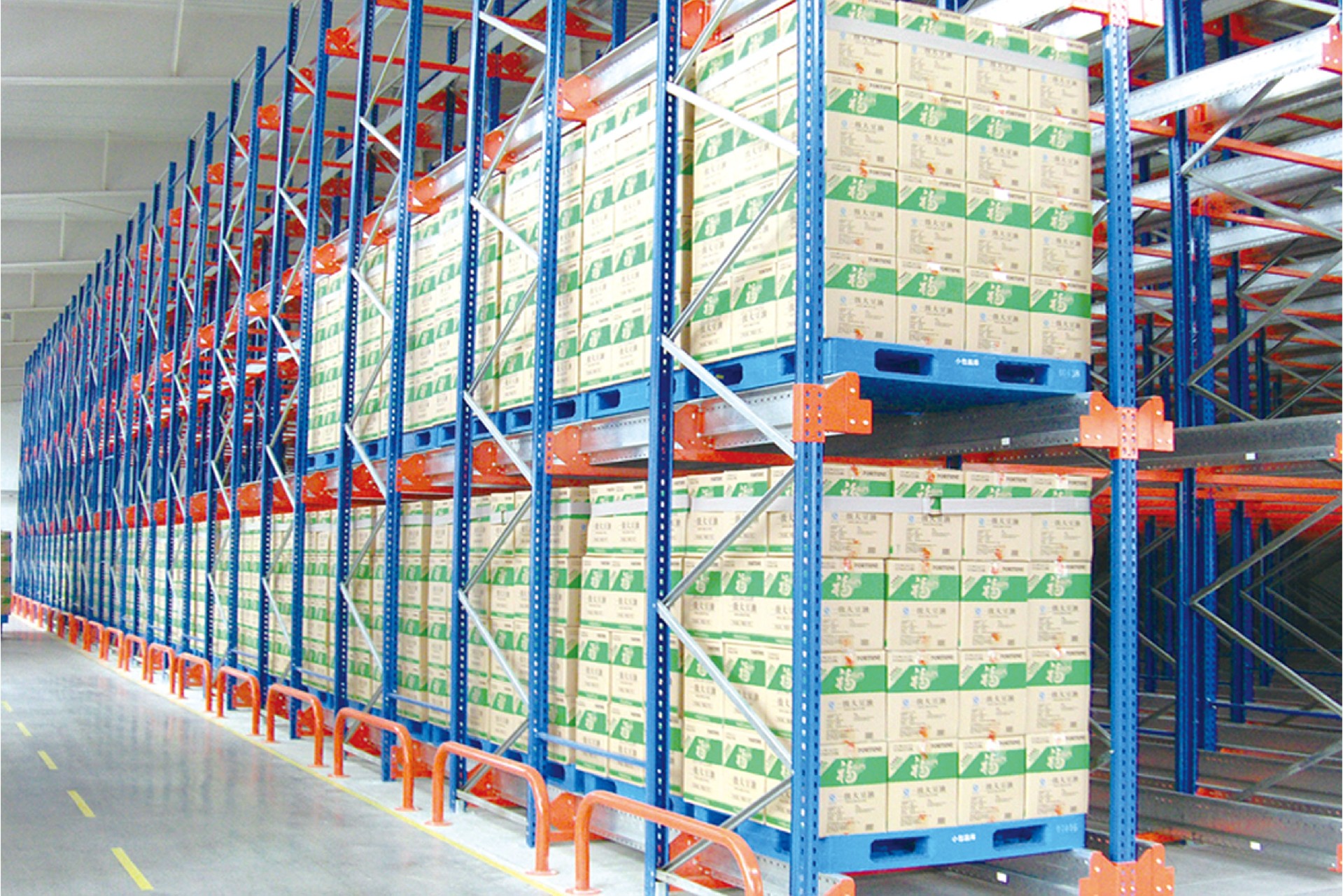

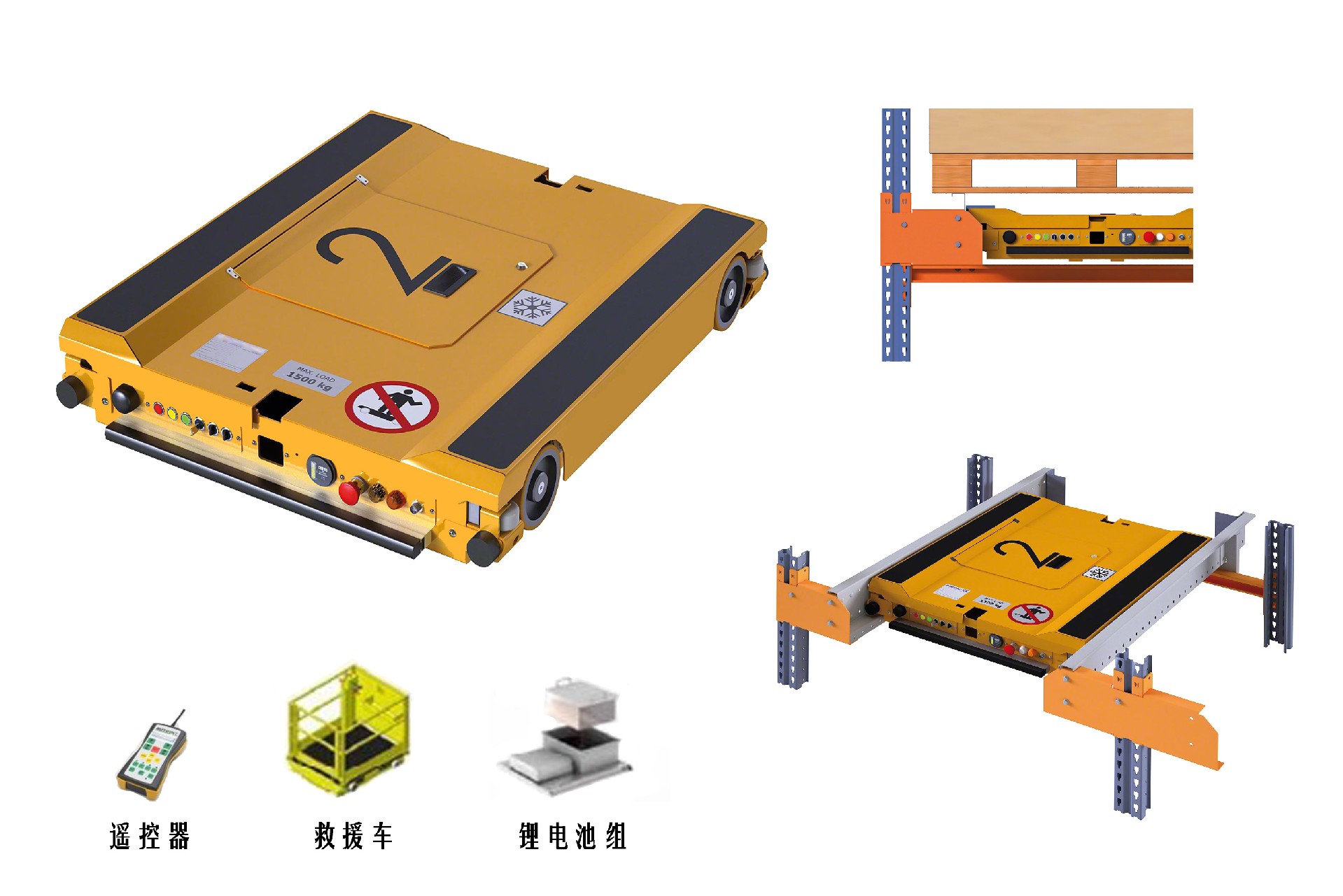

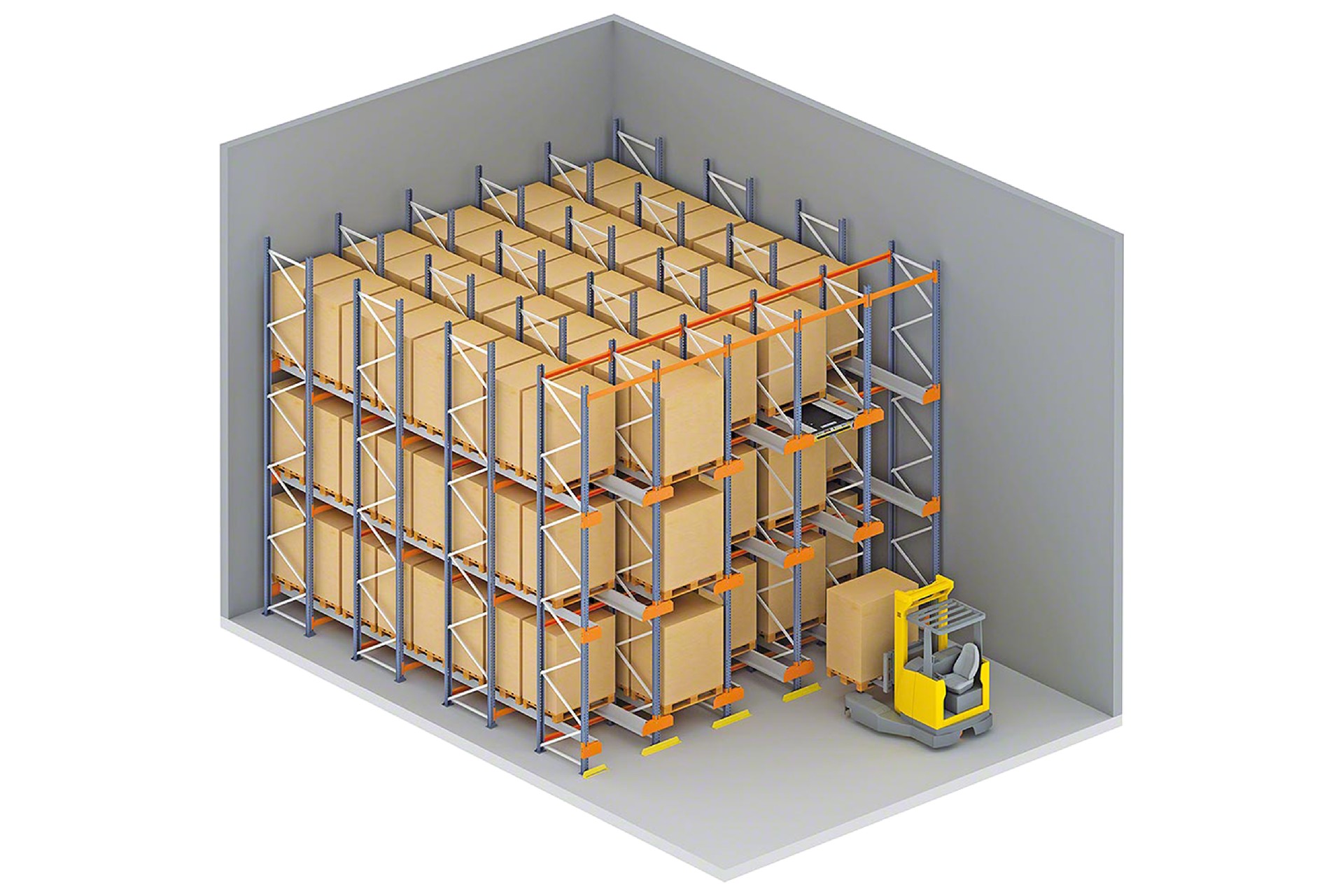

The shuttle vehicle storage system is an advanced warehouse storage management mode, featuring high storage density, convenient inbound and outbound operations, high efficiency in inventory access. It has the ability to manage a greater variety of goods compared to traditional drive-in racks, and can also achieve the functions of first-in, first-out (FIFO) and first-in, last-out (FILO). The entire system is composed of dedicated shuttle vehicle racks and intelligent shuttle vehicles. After functional expansion, it can also be integrated with an automatic stacking system to form a more highly integrated fully automatic storage system. The shuttle vehicle rack system is very convenient to use. First, use a forklift to place the shuttle vehicle at the front end of the track. The cross-section of the track is inclined, making it easy to place the vehicle. Then, place the goods at the initial position on the track. At this time, operate the remote control and press the automatic inbound button to transport the goods with pallets deep into the roadway to complete the storage action. When picking up goods, place the vehicle at the initial position of the track at the same time. Operate the remote control and press the automatic outbound button. The shuttle vehicle will transport the goods to the end of the track, and the forklift will remove them to complete the outbound action, and then move on to the next lane for operation. The shuttle vehicle can also automatically switch between A and B sides to enable the shuttle vehicle to pick up and store goods at both ends of the track. Advantages: ※ Since the forklift does not need to enter the rack, damage to the rack can be reduced. ※ Different types of stored goods can be grouped and stored in various modules. ※ Due to the smoothness of inbound and outbound operations, production output can be increased. ※ An effective system for accurate loading and unloading. ※ Reduces the time for unloading pallets. ※ Compatibility with pallets of different sizes. ※ Suitable for low-temperature storage. Main features of the shuttle vehicle: · High-standard safety devices effectively protect the safety of goods and staff. · The spacing between pallets in the roadway can be adjusted arbitrarily from 40-150mm in increments of 10mm. · Loading and unloading of goods in automatic mode, as well as continuous loading and unloading of goods. · Can achieve first-in, first-out or first-in, last-out. · Simple operation, rapid response, and stable operation. · Has an operating mode suitable for cold storage with a minimum temperature of up to -30℃. · The shuttle vehicle can be customized according to customer needs. · Simple maintenance and repair. · Has a variety of patented functions: pallet counting function, high-efficiency re-stowing function, etc. · High-performance lithium battery: It can be charged up to 1200 times at most; it can operate continuously for 16 hours with only 5.2 hours of charging.
