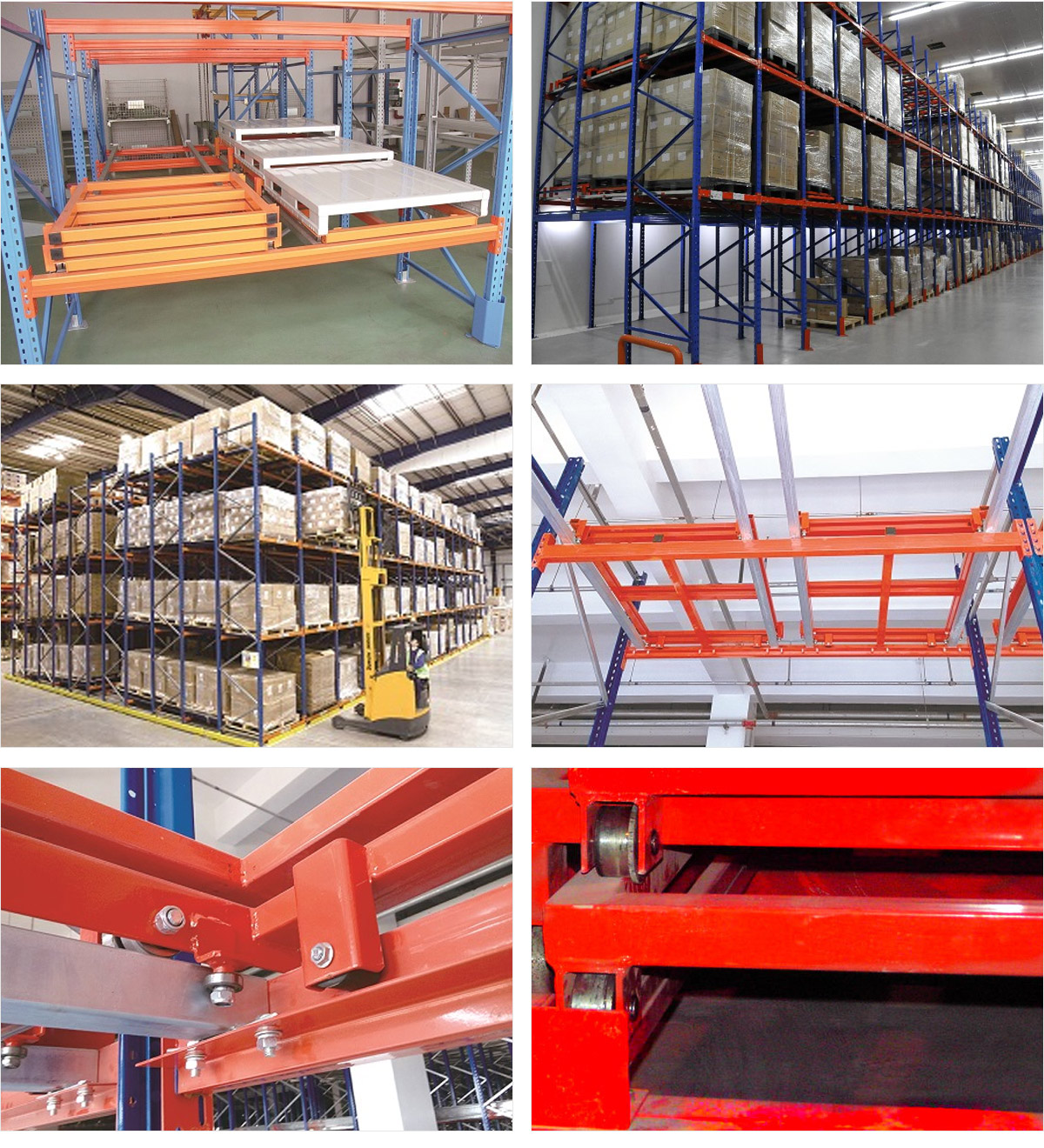

Push-back Racking Project

Beam-type Racking (Shandong ** New Energy Co., Ltd.) Case Type: Beam-type Racking Project Location: Jinan City, Shandong Province Delivery Date: November 6th, 2016 Project Introduction: This project is located in Jinan City, Shandong Province and was delivered to the customer for use on November 6th, 2016. All the racks in this project are beam-type racks. The size of a single set of racks is 2700mm (length) × 1000mm (width) × 5400mm (height), and 1200mm × 1100mm × 125mm steel pallets are used as supporting components. The upright columns are of the specification: 90mm × 70mm × 2.0mm. The cross beams are of the specification: 120mm × 50mm × 1.5mm. The load-bearing capacity of each layer is 2000 kilograms. Supplementary Instruction: In the design of the racks, both sides are against the wall, and two rows of racks in the middle are installed back to back. Connecting rods with the specification of 50mm × 30mm × 1.5mm are used for connection to increase the stability of the racks during use.
