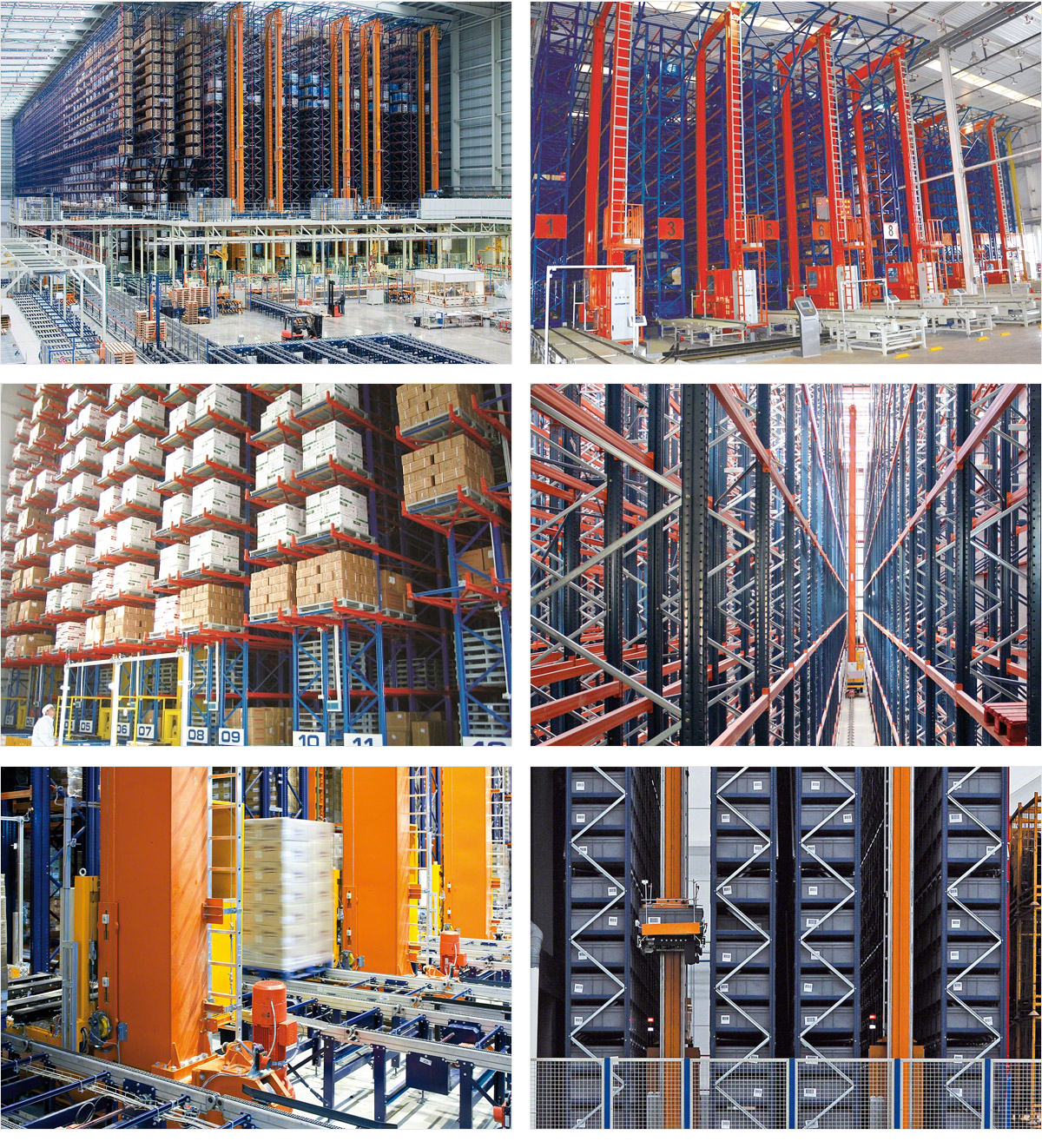

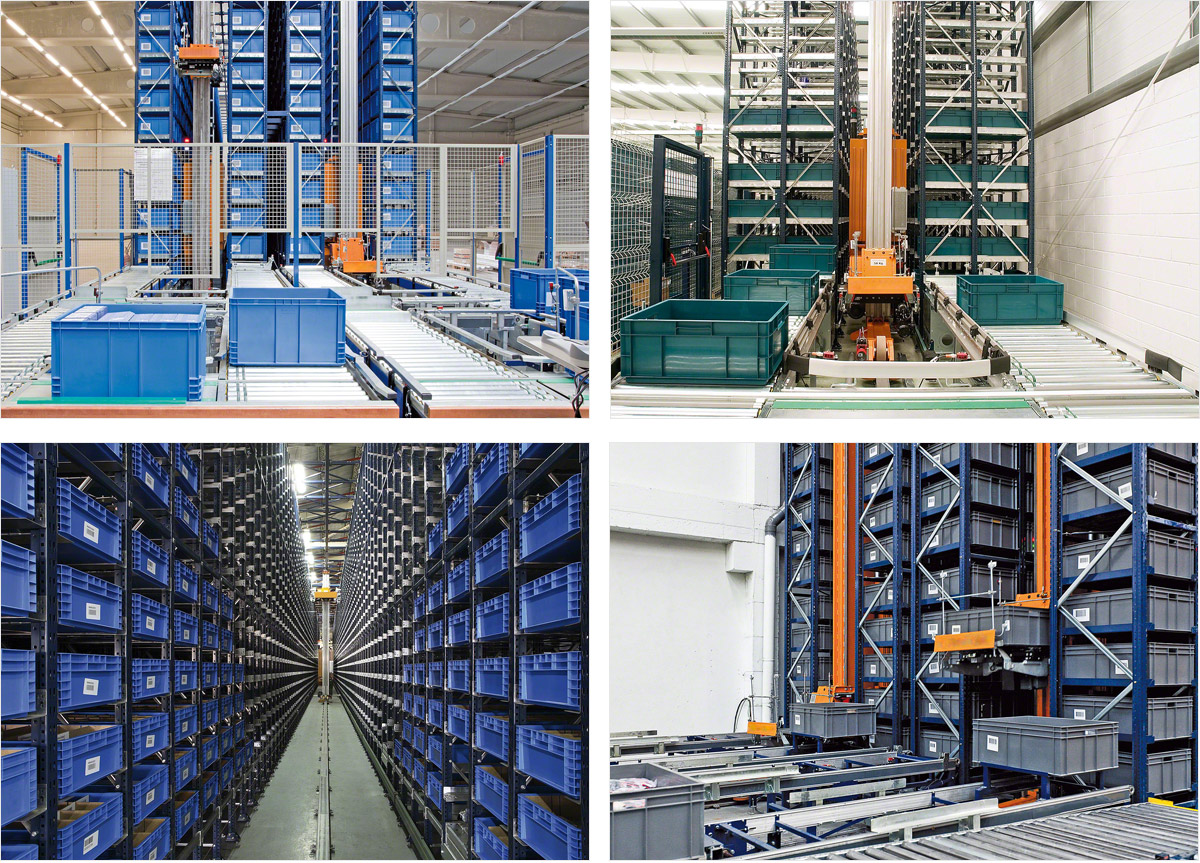

Automated Storage and Retrieval System (AS/RS) Project

Beam Racking Project (Shandong XX New Energy Co., Ltd.)

Case Type: Beam Racking
Project Location: Jinan City, Shandong Province
Delivery Date: November 6, 2016

Project Overview:
This project is located in Jinan City, Shandong Province, and was delivered to the customer on November 6, 2016. The project exclusively uses beam racking,

 with each unit measuring 2700*10005400 mm. The racking is paired with 12001100125 mm steel pallets.

Specifications:

• Uprights: 90*70*2.0 mm

• Beams: 120*50*1.5 mm

• Load Capacity per Level: 2000 kg

Additional Notes:
The racking design features two rows of shelving installed back-to-back in the center, with the sides against the walls. The rows are connected using 50301.5

 mm tie rods to enhance stability during use.
