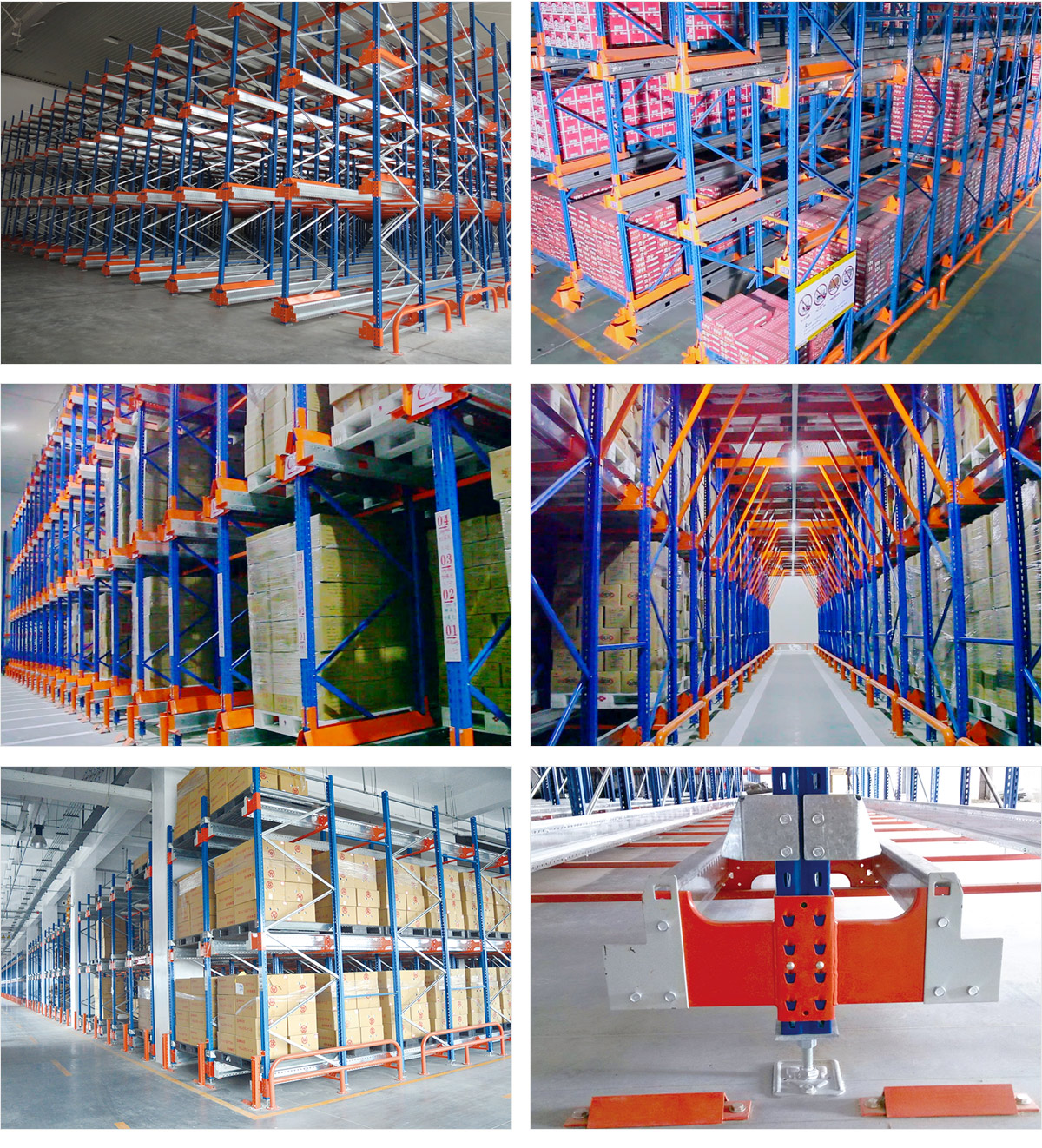

Shuttle Racking Project

Beam Racking Project (Shandong ** ** New Energy Co., Ltd.)

Case Type: Beam Racking
Project Location: Jinan City, Shandong Province
Delivery Date: November 6, 2016

Project Overview:
This project is located in Jinan City, Shandong Province, and was delivered to the customer on November 6, 2016. The project exclusively uses beam racking,

with each unit measuring 270010005400 mm. The racking is paired with 12001100125 mm steel pallets.

Specifications:

• Uprights: 90*70*2.0 mm

• Beams: 120*50*1.5 mm

• Load Capacity per Level: 2000 kg

Additional Notes:
The racking design features two rows of shelving installed back-to-back in the center, with the sides against the walls. The rows are connected using

50*30*1.5 mm tie rods to enhance stability during use.
